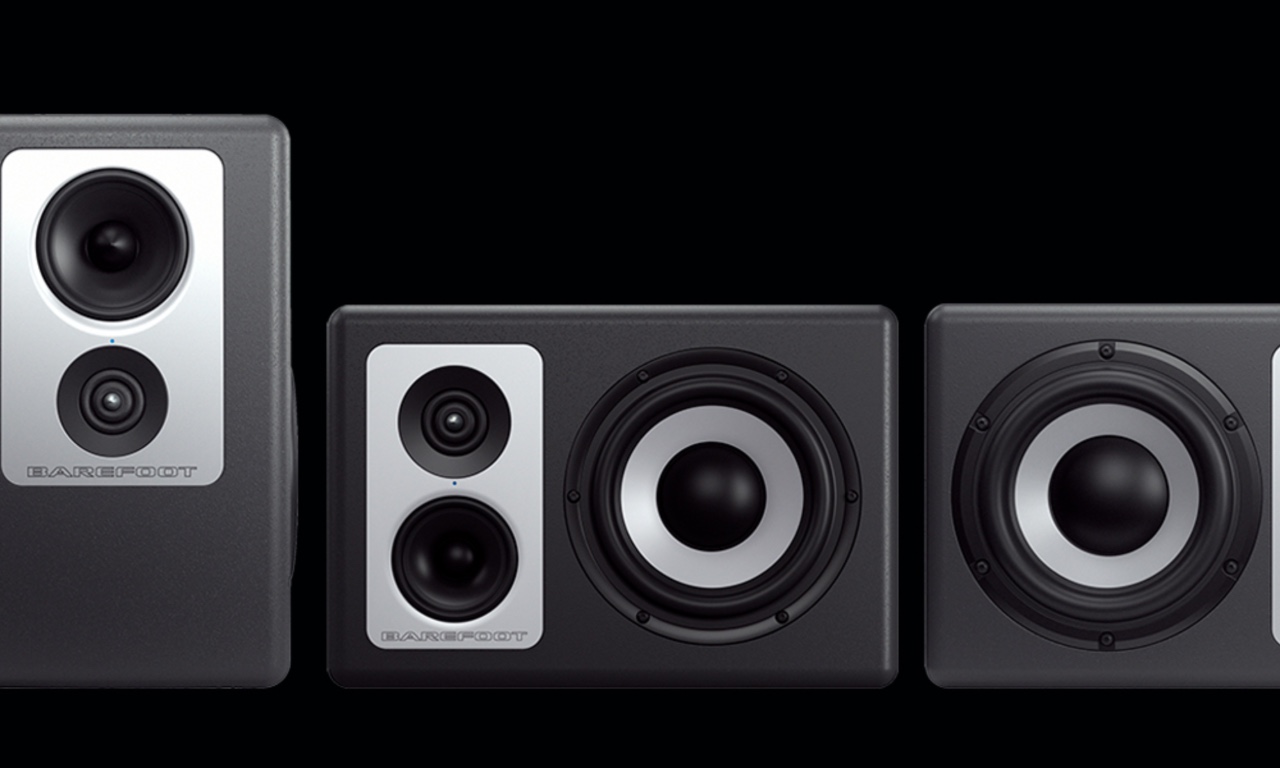

Barefoot Sound’s Footprint line of powered monitors delivers the company’s uncompromising audio performance for smaller spaces and budgets.

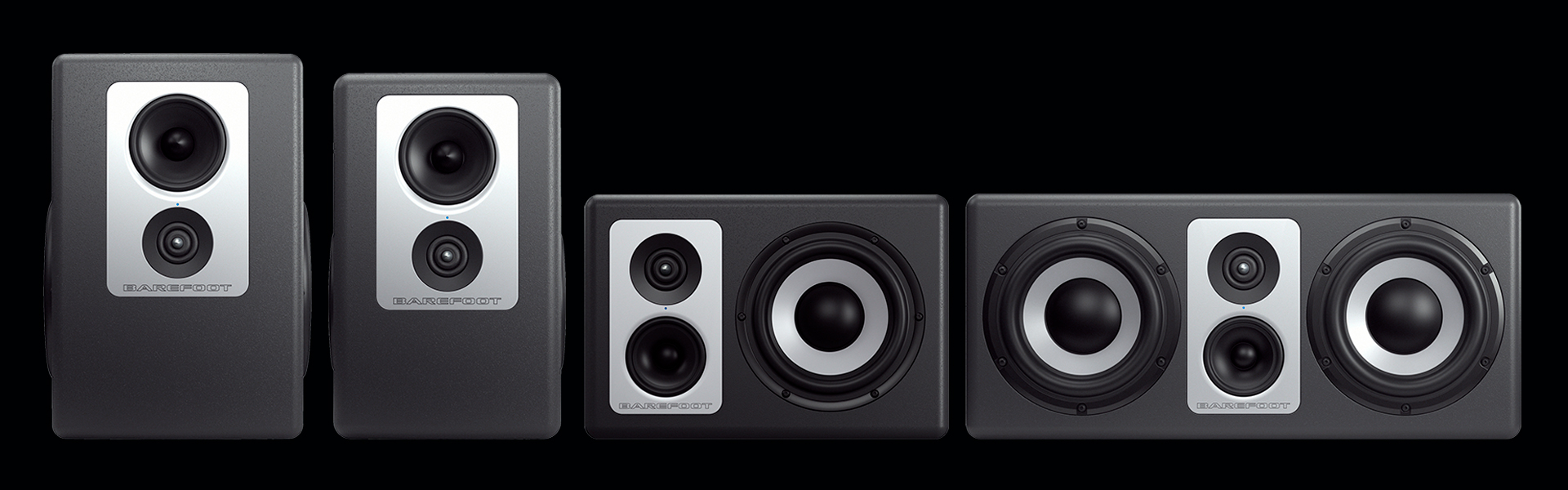

The Footprint01, Footprint02, and Footprint03 all share exceptional audio quality and design characteristics. Depending on your needs, there is a Footprint studio monitor for you. Below are the technical specifications of all three models to assist you in making a decision.
Footprint01 Technical Specifications
| Description: | 3-way active monitor with MEME™ Technology |
| Controls: | Input level stepped attenuator, MEME™ voice select |
| Input Impedance: | Balanced XLR, 20k Ohm Impedance |
| Sensitivity: | 90dB @ 1 meter with -15dBV input signal (Level control set to 0dB) |
| Frequency Response: | 36Hz – 45kHz (±3dB), 45Hz – 40kHz (±1dB) |
| Bass Response: | -3 dB @ 36Hz, Q = 0.707 Slope = 18 dB/octave asymptotic |
| Cabinet: | 18 liters total internal volume, Sealed woofer and midrange enclosures, Machined aluminum baffle plate, Acoustic damping throughout |
| Crossover Frequencies: | 250 / 3600 Hz (Passive crossover between Midrange and Tweeter) |
| Tweeter: | 1″ ring radiator, Low distortion motor, Rear waveguide chamber |
| Midrange: | 4.0″ aluminum cone, Aluminum phase plug, Low distortion motor |
| Woofers: | 8″ paper composite cone, low distotion motor, Dual-Force™ |
| High Frequency Amplifier: | 150W |
| Low Frequency Amplifier: | 500W |
| AC Power Input: | 85 VAC to 265 VAC |
| Power Consumption: | Idle: 15W, Maximum: 765W |
| Weight: | Speaker: 35.0 lbs each (15.9 kg) Shipping: 44.5 lbs each (20.2 kg) |
| Dimensions HxWxD: | Cabinet: 14.0 x 9.5 x 13.0 inches (356 x 241 x 330 mm) Overall: 14.0 x 10.25 x 13.6 inches (356 x 260 x 345 mm) |
Learn more about the Footprint01>
Footprint02 Technical Specifications
| Description: | Input level stepped attenuator, MEME™ Technology |
| Controls: | Input level stepped attenuator, MEME™ voice select |
| Input Impedance: | Balanced XLR, 20k Ohm Impedance |
| Sensitivity: | 90dB @ 1 meter with -15dBV input signal (Level control set to 0dB) |
| Frequency Response: | 42Hz – 45kHz (±3dB), 52Hz – 40kHz (±1dB) |
| Bass Response: | -3 dB @ 42Hz, Q = 0.707 Slope = 18 dB/octave asymptotic |
| Cabinet: | 13 liters total internal volume, Sealed woofer and midrange enclosures, Machined aluminum baffle plate, Acoustic damping throughout |
| Crossover Frequencies: | 180 / 3600 Hz (Passive crossover between Midrange and Tweeter) |
| Tweeter: | 1″ ring radiator, Low distortion motor, Rear waveguide chamber |
| Midrange: | 4.0″ aluminum cone, Aluminum phase plug, Low distortion motor |
| Woofers: | 6.5″ paper composite cone, low distortion motor, Dual-Force™ |
| High Frequency Amplifier: | 150W |
| Low Frequency Amplifier: | 200W |
| AC Power Input: | 85 VAC to 265 VAC |
| Power Consumption: | Idle: 14W, Maximum: 400W |
| Weight: | Speaker: 27.9 lbs each (12.7 kg) Shipping: 33.6 lbs each (15.3 kg) |
| Dimensions HxWxD: | Cabinet: 12.12 x 8.7 x 13.0 inches (308 x 222 x 330 mm) Overall: 12.12 x 9.50 x 13.6 inches (308 x 241 x 330 mm) |
Learn more about the Footprint02>

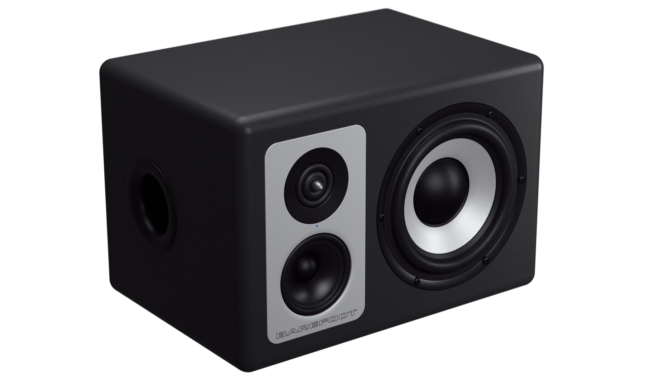

Footprint03 Technical Specifications
| Description: | Tri-amplified 3-way studio monitor with MEME™ Technology |
| Controls: | Input level stepped attenuator, MEME™ voice select |
| Input Impedance: | Balanced XLR, 20k Ohm Impedance |
| Sensitivity: | 90dB @ 1 meter with -15dBV input signal (Level control set to 0dB) |
| Frequency Response: | 45 Hz–40 kHz (+/-3 dB), 50 Hz–22 kHz (+/- 1 dB ) |
| Bass Response: | -3 dB @ 45 Hz Q = 0.707 Slope = 24 dB/octave asymptotic |
| Cabinet: | 10.5 liters total internal volume, Maschined aluminum baffle plate, Acoustic damping throughout |
| Crossover Frequencies: | 400 / 3900 Hz (Active crossover between drivers) |
| Tweeter: | 1″ ring radiator, low distortion motor, rear waveguide chamber |
| Midrange: | 3.5″ aluminum cone, Low distortion motor |
| Woofer: | 6.5″ aluminum cone, low distortion motor |
| High Frequency Amplifier: | 60W |
| Mid Frequency Amplifier: | 100W |
| Low Frequency Amplifier: | 100W |
| Power Consumption: | 85 VAC to 265 VAC Idle Power Consumption = 12W Maximum Power Consumption = 340W |
| Weight: | Speaker: 17.9 lbs each (8.1 kg) Shipping: 32.9 lbs each (14.9 kg) |
| Dimensions HxWxD: | Cabinet: 9 x 13.25 x 9.25 inches (229 x 337 x 235 mm) Overall: 9 x 13.25 x 9.25 inches (229 x 337 x 235 mm) |
Learn more about the Footprint03>
